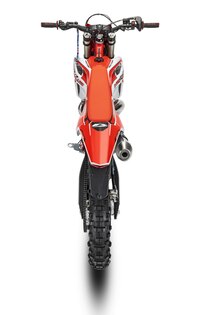

2025 Beta RR 250 ENDURO |
|||||||||||||
|
|||||||||||||
|
Specifications
|
|||||||||||||
|
Description
|
|||||||||||||
|
UPDATES ARE AS FOLLOWS
|
|||||||||||||
|
Updates_are_as_follows
|
|||||||||||||
|
OTHER FEATURES
|
|||||||||||||
|
Other_Features
|
|||||||||||||
|
CHASSIS
|
|||||||||||||
|
Frame
Molybdenum steel with double cradle split above the exhaust port
Reserve
2,3 l.
Rear_rim
18 x 2,15 - 36 holes
Front_rim
21 x 1,6 - 36 fori
Max_width
830 mm
Rear_tyre
140/80 -18
Wheelbase
1482 mm
Dry_weight
103,5 kg (front 50,8 kg; rear 52,7 kg)
Front_tyre
90/90 - 21
Max_height
1270 mm
Max_length
2175 mm
Rear_brake
Wave disc ø240 mm and single-piston floating caliper
Front_brake
Wave disc ø260 mm and double-piston floating caliper
Seat_height
930 mm
Footrest_height
407 mm
Rear_suspension
Monoshock with progressive compound lever
Front_suspension
Hydraulic USD fork with ø 48 mm shaft
Ground_clearance
320 mm
Rear_wheel_travel
290 mm
Front_wheel_travel
295 mm
Fuel_tank_capacity
9,5 l.
Shock_absorber_stroke
132 mm
Cooling_system_capacity
1,3 l.
|
|||||||||||||
|
ENGINE
|
|||||||||||||
|
Bore
66,4 mm
Type
Single cylinder, 2-stroke, liquid-cooled
Clutch
wet multi-disc clutch
Stroke
72 mm
Starter
Electric starter
Ignition
AC Kokusan - digital CDI with oil pump controller
Engine_oil
SAE 10W/40
Spark_plug
NGK BR8ECM
Carburettor
Keihin PWK 36
Lubrication
Mixing with electrical pump
Displacement
249 cc
Transmission
6 gears
Exhaust_Valve
BPV system
Primary_drive
Z.27/72
Induction_system
induction reed
Compression_ratio
13,2:1
Final_transmission
chain
Consumption_l/100_km
2,493
Pollution_Co2_[g/km]
59
|
