2024 Yamaha TW200

Name: 2024 Yamaha TW200
Brand: Yamaha
Availability: InStock

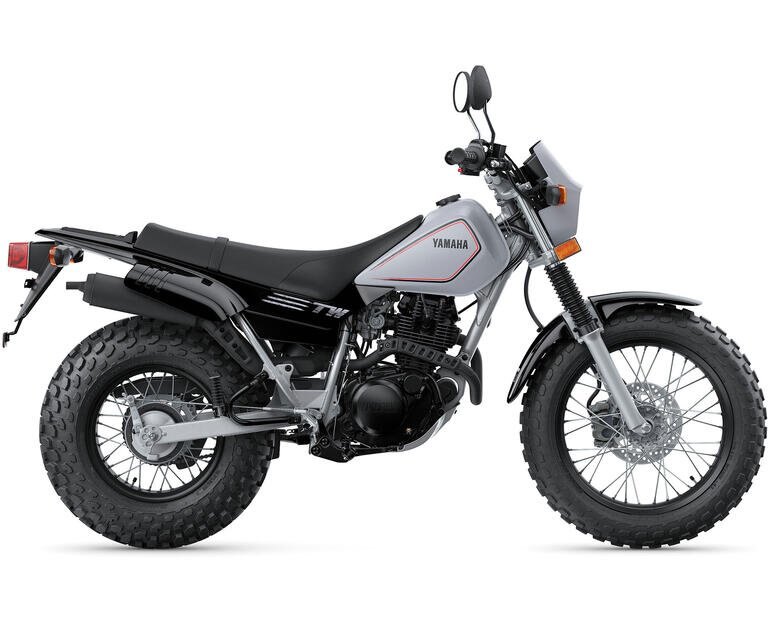

2024 Yamaha TW200

Stock # TW190372

$5,799 CAD

Plus Freight, PDI, Dealer Prep and Taxes

Location:
Calgary
Fernie
Kimberley

Not available at your location? No Problem, we will transfer it to your nearest location. On checkout, please indicate which location is closest for you.

Get a Quote Get Financed Value a Trade

Print

Contact Us

Model

TW

Category Name

Motorcycles

Year

2024

Sale Type

New

Manufacturer

Yamaha

Vin

JYA3AWN07RA190372

Quantity

1

Manufacturer Qty

0

Engine Size

196cc

Overview

A low seat, extra-wide tires, and a proven four-stoke engine have cemented the TW200's reputation as a unique, fun-loving dual purpose ride. Whether you're a beginner or a veteran, a camper or a city dweller, this bike guarantees good times.

Specifications

Model

TW

Category Name

Motorcycles

Year

2024

Sale Type

New

Manufacturer

Yamaha

Vin

JYA3AWN07RA190372

Engine Size

196cc

Class

D

CodeName

TW200RG

Model Code

TW200RG

Titlestatus

CLEAN

Unitcondition

EXCELLENT

DISPLACEMENT

196cc

engine

ENGINE

Air-cooled, SOHC, 2-valve, single

FINAL_DRIVE

Chain

TRANSMISSION

Constant mesh, 5-speed

FUEL_DELIVERY

Teikei MV28

MAXIMUM_TORQUE

1.4kg-m (10.1ft-lb)@ 7,000 rpm

BORE_AND_STROKE

67 x 55.7mm

COMPRESSION_RATIO

9.5:1

IGNITION_/_STARTING

CDI / Electric Start

chassis

TIRES_(REAR)

180/80-14

BRAKES_(REAR)

Drum

TIRES_(FRONT)

130/80-18

BRAKES_(FRONT)

220mm disc / twin piston caliper

SUSPENSION_(REAR)

Monocross / 150mm (5.9") wheel travel

SUSPENSION(FRONT)

33mm fork / 160mm (6.3") wheel travel

highlights

ENGINE

The TW's proven, 196 cc, air-cooled, four-stroke single delivers torquey low- and mid-range power perfectly suited to off-road exploring or riding around town.

COMFORT

An internal engine counterbalancer provides smooth performance while wide tires provide plenty of grip and a unique style. The long, wide seat design means lots of comfort whether exploring, commuting or just out having fun.

key features

Electric starting.
Single overhead camshaft (SOHC), 2-valve cylinder head.
Automatic cam chain tensioner.
Aluminum cylinder features a cast iron liner.
Lightweight ball-bearing-mounted crankshaft.
Engine counterbalancer.

critical data

WIDTH

820mm (32.3")

HEIGHT

1,120mm (44.1")

LENGTH

2,090mm (82.3")

WHEELBASE

1,325mm (52.2")

WET_WEIGHT

126kg (278 lb)

SEAT_HEIGHT

790mm (31.1")

BED_CAPACITY

136 kg (300 lb)

FUEL_CAPACITY

7 litres (1.5 imp. gallons)

GROUND_CLEARANCE

265mm (10.4")

features and benefits

ENGINE

Super reliable, 196 cc, air-cooled, SOHC, 2-valve single delivers torquey low- and mid-range power perfectly suited to off-road exploring or riding around town.
Electric starting.
- Fast, easy, no-hassle starting
Single overhead camshaft (SOHC), 2-valve cylinder head.
- basic design for easy, less expensive maintenance
- 34 mm intake and 28.5 mm exhaust valves
- utilizes easy to adjust conventional rocker arms and screw-type tappet adjusters
Automatic cam chain tensioner.
- reduces mechanical engine noise and maintenance
Aluminum cylinder features a cast iron liner.
- cylinder can be "bored out" in the event of a problem (2 sizes available)
Lightweight ball-bearing-mounted crankshaft.
- excellent durability
- fast engine response
Engine counterbalancer.
- reduces engine vibration to maximize rider comfort
28 mm Teikei carburetor
- carb-mounted choke knob
- provides crisp throttle response
- excellent fuel economy
Washable, foam air filter reduces maintenance costs.
Easy-access element-type oil filter and drain plug for fast oil changes.
Smooth-shifting 5-speed transmission with manual clutch.
- optimized gear ratios for both on- and off-road riding
- 5th gear is an overdrive gear to reduce engine rpm at highway speeds
Up-swept exhaust system
- exhaust note is quiet and environmentally friendly
- cleanable spark arrestor
- heat shields on header pipe and muffler protect rider and passenger from accidental contact
Maintenance-free capacitor discharge ignition (CDI).
- produces a strong spark for fast starts
- provides precise ignition timing/mapping for optimum engine performance at all rpm
Rugged, aluminum engine skid plate

CHASSIS / SUSPENSION

Compact, diamond-type, high-tensile steel frame.
Rugged, steel box-section swingarm.
- grease fittings at the swingarm pivot points for easy maintenance and extended service life
- fitted with easy-to-use eccentric chain adjusters
33 mm front fork with 160 mm (6.3") of wheel travel
- soaks up the bumps for a comfortable ride
- rubber fork boots (gaiters) keep dirt and grit out of fork seals for extended life
Single-shock Monocross link rear suspension with 150 mm (5.9") of wheel travel.

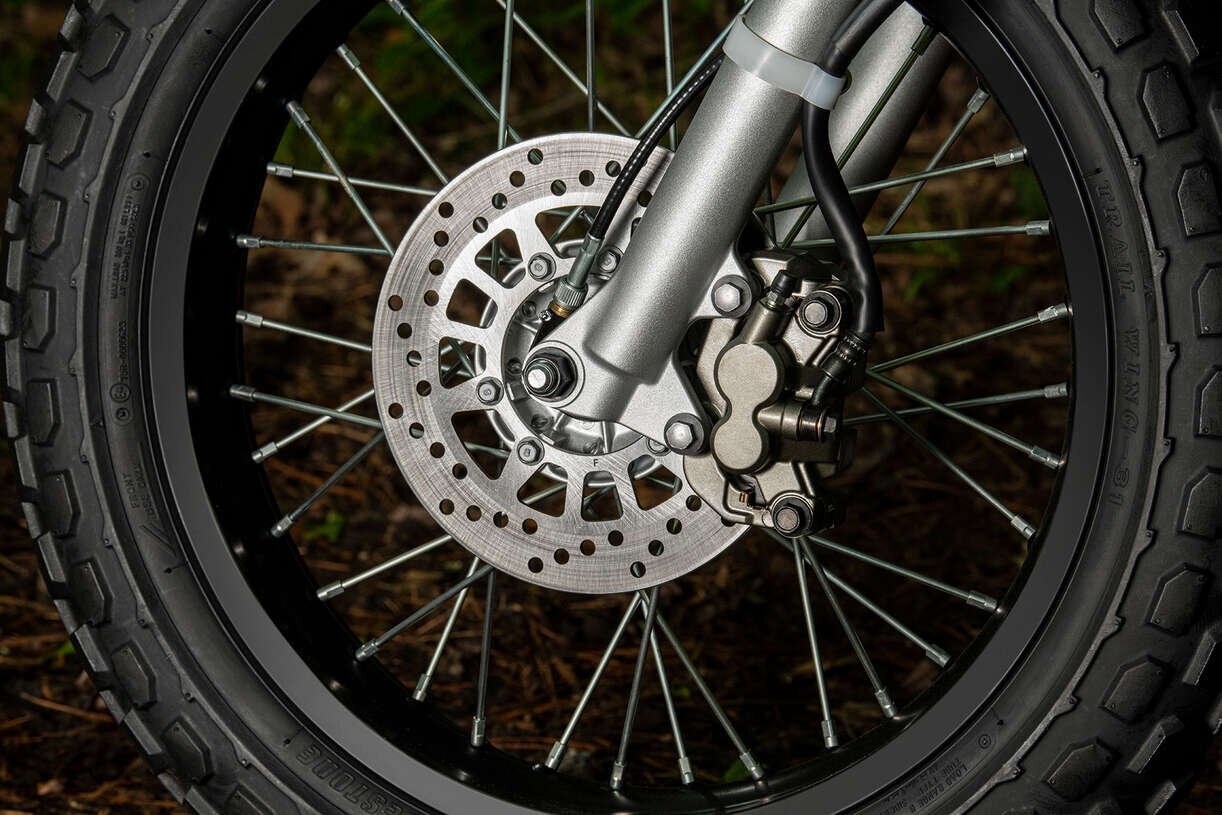

220 mm front disc brake with twin piston caliper
- ensures serious stopping power
Rear drum brake
- solid stopping power
- easy-to-use, wing-nut-style adjuster

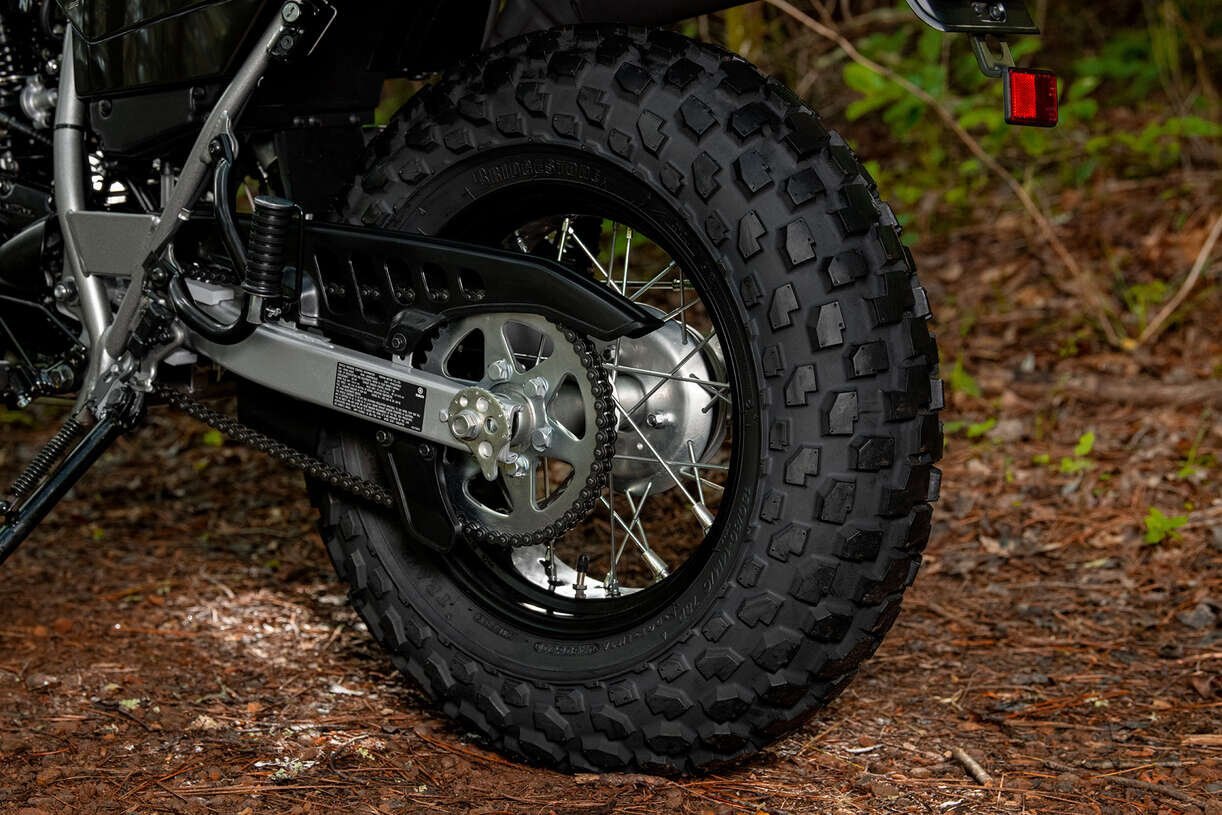

Wide, 130/80-18 front tire and unique 180/80-14 rear tire.
- deliver extra traction and great rider comfort over a wide range of terrain
- rear tire helps make TW200 the most distinct-looking dual purpose machine in the industry
Low, 790 mm (31.1") seat height
- allows most riders to put both feet firmly on the ground.
7-litre steel fuel tank
- on/off/reserve fuel petcock provides peace of mind
- 1.7-litre reserve
Lightweight aluminum alloy front and rear rims
- excellent durability
- reduces unsprung weight for optimal suspension performance
Powerful, 60/55-watt, halogen headlight
Mini, enduro-style fairing
- helps reduce wind buffeting at highway speeds
- adds a styling highlight too.
Compact meter / instrument assembly
- functions include: speedometer, odometer & resettable trip meter
- indicator lights for neutral, high beam & turn signals
- retro paint and graphics
