  • 2024 Yamaha WOLVERINE® X2 850 R SPEC

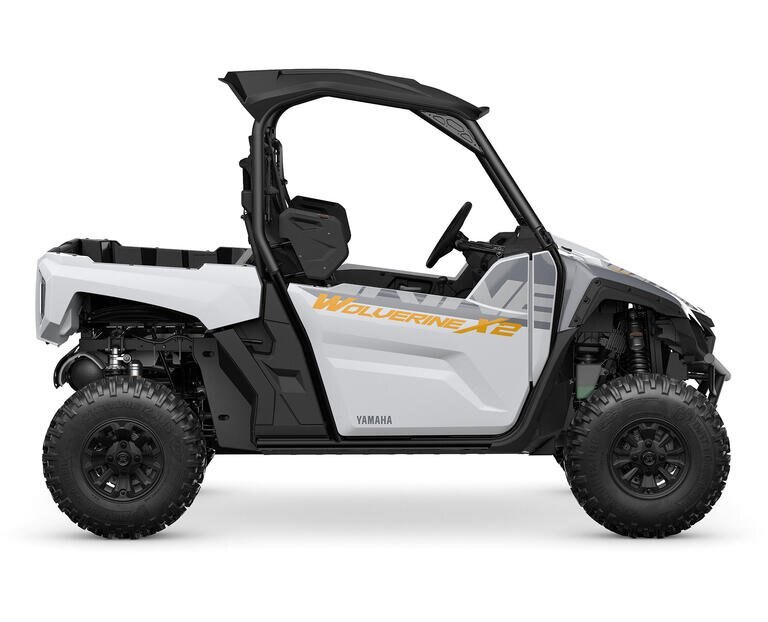

2024 Yamaha WOLVERINE® X2 850 R-SPEC

Sale
$19,899.00
$20,399 CAD
Plus freight, PDI and Dealer Prep
Not available at your location? No Problem, we will transfer it to your nearest location. On checkout, please indicate which location is closest for you.
Get a Quote Get Financed Value a Trade
Print ButtonPrint Contact ButtonContact Us
Overview

The tight trail-conquering Wolverine X2 850 R‑Spec proves its off‑road performance prowess with superior capability, comfort and confidence.
Specifications
Model
Wolverine
Category Name
UTV - Side x Side
Year
2024
Sale Type
New
Manufacturer
Yamaha
Color
White/Armour Grey
Engine Size
847 cc
DISPLACEMENT
847 cc
engine
ENGINE
847 cc, liquid-cooled, DOHC, 8-Valve, Parallel Twin
IGNITION
TCI
STARTING
Electric
FINAL_DRIVE
Shaft
TRANSMISSION
Yamaha Ultramatic V-Belt, CVT with On-Command (2WD, 4WD limited slip, 4WD diff-lock)
FUEL_DELIVERY
Dual Mikuni 36 mm throttle body F.I.
BORE_AND_STROKE
82.0 mm x 80.2 mm
COMPRESSION_RATIO
10.5 : 1
chassis
TIRES_(REAR)
AT 27 X 11 – 12 GBC® Dirt Commander™
BRAKES_(REAR)
Dual 207 mm discs / twin piston hydraulic calipers / 200 mm parking brake
TIRES_(FRONT)
AT 27 X 9 – 12 GBC® Dirt Commander™
BRAKES_(FRONT)
Dual 207 mm discs / twin piston hydraulic calipers
SUSPENSION_(REAR)
Independent Double Wishbone with Anti-sway bar / 236 mm (9.3") of wheel travel
SUSPENSION(FRONT)
Independent Double Wishbone with Anti-sway bar / 221 mm (8.7") of wheel travel
highlights

COMFORT2024 Yamaha WOLVERINE® X2 850 R SPEC

The Wolverine X2 850 R-Spec features well-damped suspension at all four corners for improved chassis control and handling feel. High performance KYB® piggyback shocks built specifically for Yamaha are fully adjustable with spring preload, rebound, and high- and low-speed compression damping to allow tuning to suit a wide range of driver preferences and conditions.

CAPABILITY2024 Yamaha WOLVERINE® X2 850 R SPEC

Extreme terrain calls for tires that handle the abuse while providing confidence-inspiring grip and feedback. The Wolverine X2 850 R-Spec rolls on 27-inch GBC® Dirt Commander radial tires that not only improve ground clearance and traction but feature rugged 8-ply construction for exceptional durability.

CONFIDENCE2024 Yamaha WOLVERINE® X2 850 R SPEC

To ensure gnarly terrain doesn’t stop you, full skid plates protect the entire underbody of the Wolverine X2 850 R-Spec, from the front differential to the rear gear case. Skid plates also include convenient service points to access fluid drain locations without removing the guards.

CONFIDENCE2024 Yamaha WOLVERINE® X2 850 R SPEC

The Wolverine X2 850 R-Spec transmission uses its own cooling intake to maintain proper temperatures, an oversized belt to handle the torque of the large engine and Yamaha’s unique sprag clutch to maintain constant belt tension. The end result is a drivetrain built for years of trouble-free service that leaves the competition in the dust, and is backed by the industry's only 10-Year V-Belt Limited Warranty.



key features
  • Potent 847cc Twin-Cylinder Powerplant
  • Spacious, Flexible Ergonomics
  • Responsive and Reliable Ultramatic® Transmission
  • Compact and Nimble Chassis
  • Plush Suspension
  • Speed Management System



critical data
WIDTH
1580 mm (62.2")
HEIGHT
1900 mm (74.8")
LENGTH
2920 mm (114.9")
WHEELBASE
2100 mm (82.7")
WET_WEIGHT
719.5 kg (1586 lb)
BED_CAPACITY
272 kg (600 lb)
FUEL_CAPACITY
35 L (7.7 Imp. Gal.)
TOWING_CAPACITY
907 kg (2000 lb)
GROUND_CLEARANCE
280 mm (11")
features and benefits

ENGINE

  • 847cc Twin-Cylinder Powerplant
    • 847cc DOHC, eight-valve, parallel twin-cylinder engine
    • Forged pistons and connecting rods ensure durable high-rpm performance
    • 270-degree crankshaft design and lightweight internals
    • Features a dry-sump design for a more compact layout and offset cylinder block to reduce friction loss
  • Smooth, Quiet Powertrain
    • Helical-cut drivetrain gearing, rubber-mounted and counterbalanced engine, with a variety of noise and vibration reducing inserts around cabin make for one of the quietest cabins in the industry
  • Ultramatic Transmission
    • Most advanced and durable CVT drive system available
    • Automatic centrifugal clutch maintains constant belt tension for reduced belt wear
    • Natural all-wheel engine braking
    • Oversized belt for durability under aggressive riding while maintaining low cruising rpm for smooth, quiet riding
  • On-Command 4WD
    • Renowned On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD
  • Reliable Engine Lubrication and Cooling
    • Large oil capacity circulates in the dry-slump system with a liquid-cooled oil cooler
    • Features a big radiator with integrated blower
  • Yamaha Chip Controlled Throttle (YCC-T)
    • Utilizes YCC-T®, a drive-by-wire system that converts the drivers command into precise throttle control
    • Throttle response is further improved thanks to a high-response servo motor for ultrafast throttle application
    • 12-hole fuel injectors and a high-volume airbox with two-stage air filtration
  • Speed Management System
    • Comes standard with a Speed Management System
    • Allows the owner to limit vehicle top speed of 40 km/hr (25 mph)

CHASSIS

  • High-Performance Suspension
    • Offers class-leading suspension performance that blurs the line between utility comfort and sport performance
    • KYB® piggyback shocks are fully-adjustable and offer extensive adjustment range, plush control and long-lasting durability
    • Spring preload, rebound damping and both high and low-speed compression damping
  • Compact and Nimble Chassis
    • Designed for maneuverability, the chassis is super agile, making tight trails a breeze
    • Lightweight steering to select the ideal line
    • Upswept underbody design and wide-arc A-arms
    • Big approach and departure angles to clear challenging terrain
  • Spacious, Flexible Ergonomics
    • High-back seats, shoulder bolsters and plenty of legroom
    • Comfortable, secure seating for whatever and wherever your next adventure takes you
  • Class-leading Electric Power Steering
    • Provides industry's best balance of steering assist and positive feedback from trail, with light steering, speed-sensitive steering response and minimal fatigue
  • Maximum Versatility
    • Tilting cargo bed to simplify hauling duties
    • Built with hydraulic assistance and a robust latch system, the bed transports up to 600 pounds with multiple tie-down points to secure cargo or attachaccessories
    • 2,000 pounds of towing capacity with 2-inch receiver
  • Full Underbody Skid Plates
    • Skid plates protect the entire underbody of the Wolverine X2
    • Ensure gnarly terrain doesn't stop you and includes convenient service points to access fluid drain pointsSuperior Mud Protection
    • Full-enclosed doors and high, wide fenders ensure that mud, rocks and sticks all stay outside the cabin
  • Accessory Ready
    • Nearly 600 watts of electrical output from the engine
    • Standard 12v DC port and multiple pre-wired accessory switched
    • Multiple pre-wired accessory switches ready for a wide range of accessories and add-ons

DETAILS

  • Complete Instrumentation
    • All-digital meter gives the driver a complete picture at a glance with large dimmable readout.
    • Vehicle status and warnings are all clearly displayed
    • Accessible odometer, trip and hour meters
  • LED Lighting
    • Features LED headlights and taillights
    • Brilliant visibility, long life and minimal power draw
