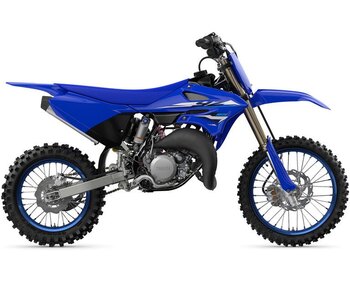

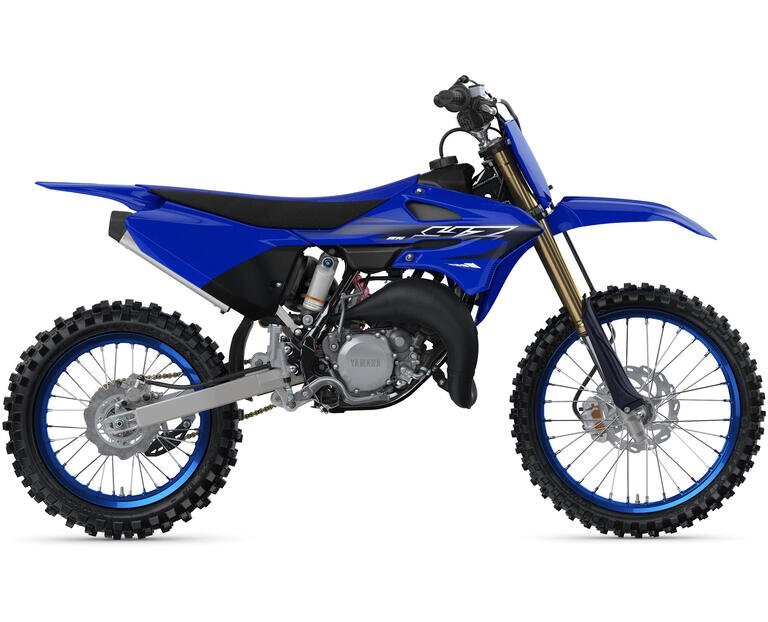

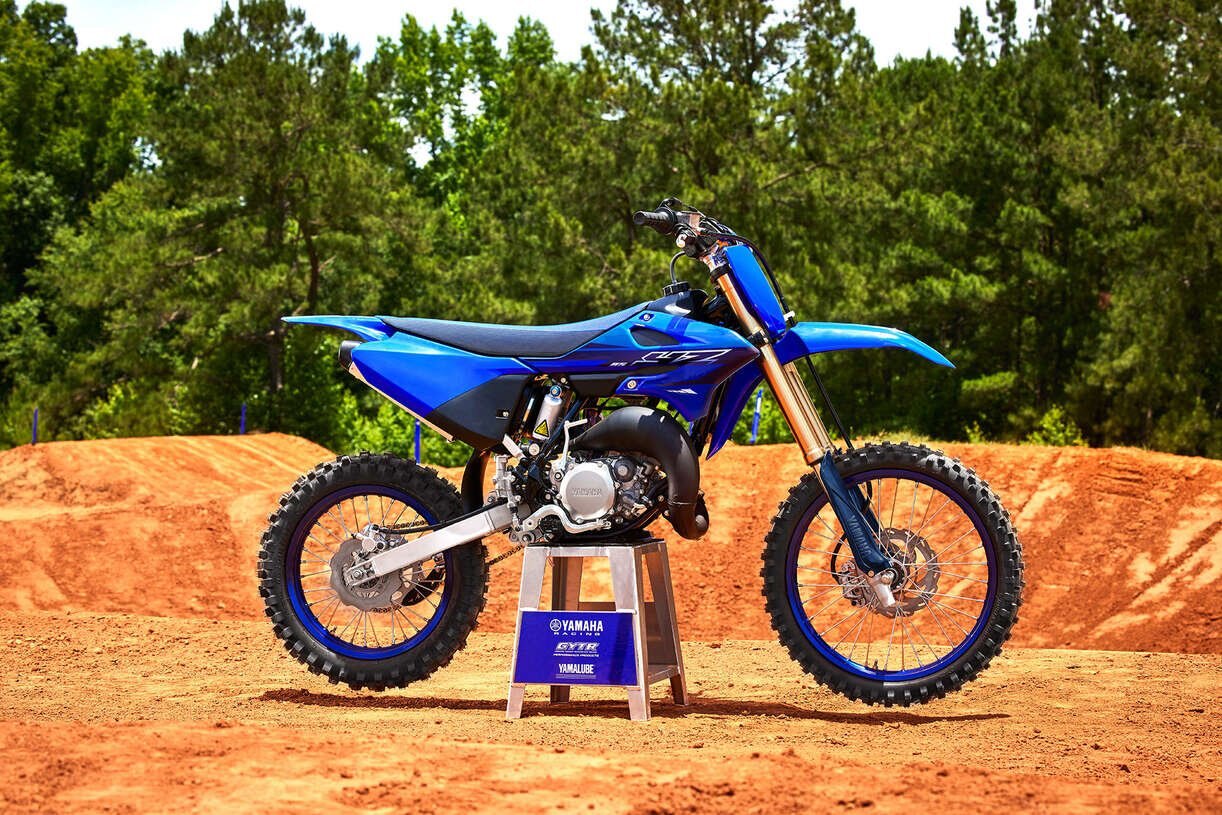

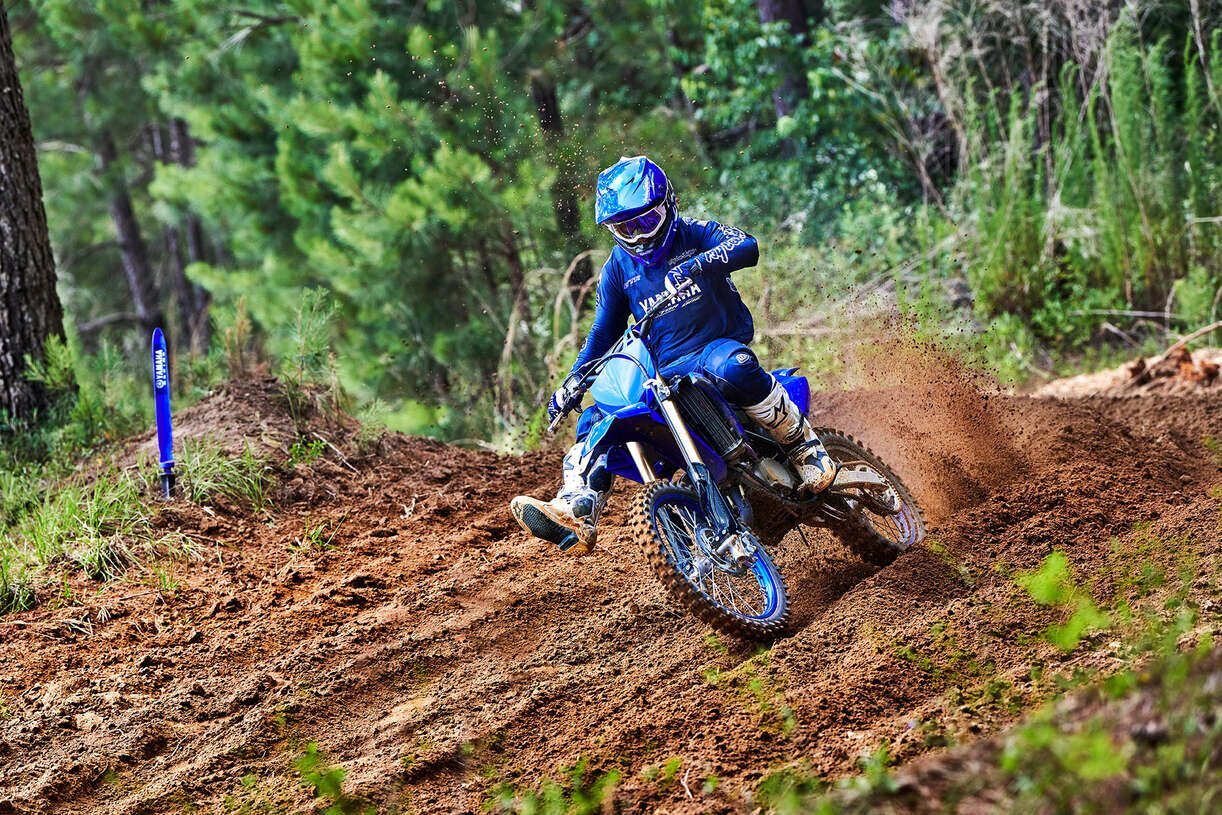

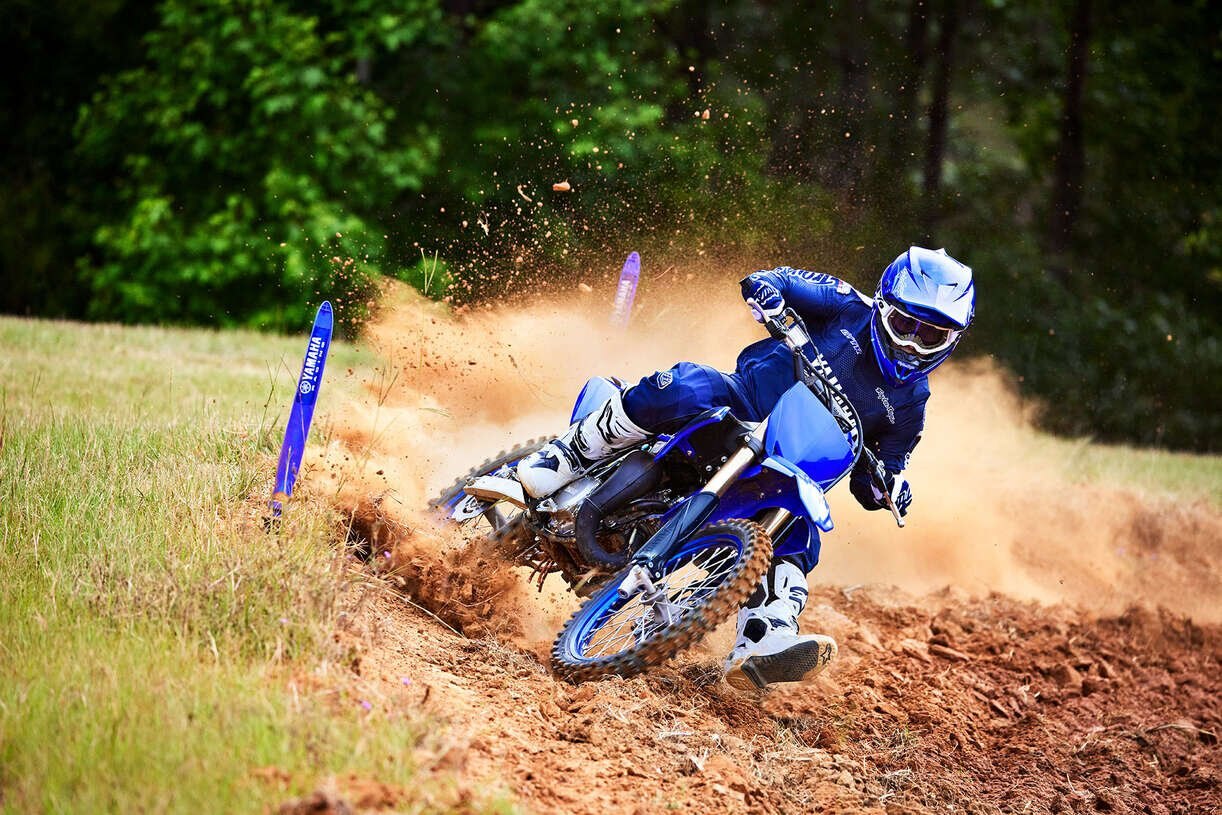

2023 Yamaha YZ85

Name: 2023 Yamaha YZ85
Brand: Yamaha
Availability: InStock

2023 Yamaha YZ85

Stock # YZ002919

$6,599 CAD

Plus freight, PDI and Dealer Prep

Location:
Calgary
Fernie
Kimberley

Not available at your location? No Problem, we will transfer it to your nearest location. On checkout, please indicate which location is closest for you.

Get a Quote Get Financed Value a Trade

Print

Contact Us

Model

YZ

Category Name

Motorcycles

Year

2023

Sale Type

New

Manufacturer

Yamaha

Vin

JYACB15C6RA002919

Quantity

1

Manufacturer Qty

0

Color

TEAM YAMAHA BLUE

Overview

GO BIG- Same YZ85 power, same YZ85 fun, equipped with a large wheel package allowing riders to bridge the gap to the next class. Boasting many premium features to earn its stripes in the YZ lineup, the YZ85LW is ready to win races straight off the dealership floor.

Specifications

Model

YZ

Category Name

Motorcycles

Year

2023

Sale Type

New

Manufacturer

Yamaha

Vin

JYACB15C6RA002919

Color

TEAM YAMAHA BLUE

Engine Size

85cc

Class

D

CodeName

YZ85

Model Code

YZ85RL

Titlestatus

CLEAN

Unitcondition

EXCELLENT

Model Code

YZ85RL

engine

ENGINE

2-stroke, liquid-cooled, crankcase-reed-valve single with YPVS

FINAL_DRIVE

Chain

LUBRICATION

Wet sump

DISPLACEMENT

85cc

TRANSMISSION

Constant mesh, 6-speed

FUEL_DELIVERY

Keihin PWK28

BORE_AND_STROKE

47.5 x 47.8 mm

COMPRESSION_RATIO

8.2-9.6:1

IGNITION_/_STARTING

CDI / Kick

chassis

TIRES_(REAR)

90/100-16 Geomax MX3S

BRAKES_(REAR)

190 mm disc / single-piston caliper

TIRES_(FRONT)

70/100-19 Geomax MX3SF

BRAKES_(FRONT)

220 mm disc / twin-piston caliper

SUSPENSION_(REAR)

Fully adjustable KYB shock / 287 mm (11.3 in) wheel travel

SUSPENSION(FRONT)

Fully adjustable KYB 36 mm inverted fork / 275 mm (10.8 in) wheel travel

highlights

LARGER FRONT & REAR WHEEL

The YZ85 Large Wheel (LW) model raises the bar for off-road capability with a larger 19-inch front wheel and 16-inch rear wheel clad in high performance 70/100/19 front and 90/100/16 rear Dunlop® MX3S tires. Perfect for the advanced 85cc rider looking for a more "big-bike" feel.

POTENT YPVS™ TWO-STROKE ENGINE

The 85cc liquid-cooled, two-stroke engine features the Yamaha Power Valve System for broad power across the rev range without losing peak power at high rpm—improving rideability and reducing the need for frequent shifting.

OPTIMIZED CHASSIS DESIGN

Built for demanding junior racers, the YZ85 LW's chassis is optimized for strength, rigidity and overall handling stability. The aluminum swingarm offers refined balance between longitudinal and torsional rigidity, and the removable rear subframe constructed from lightweight, high-strength aluminum reduces weight.

critical data

WIDTH

760 mm (29.9 in)

HEIGHT

1176 mm (46.3 in)

LENGTH

1,895 mm (74.6 in)

COLOUR(S)

Yamaha Racing Blue

WHEELBASE

1285 mm (50.6 in)

WET_WEIGHT

75 kg (165 lb)

SEAT_HEIGHT

884 mm (34.8 in)

FUEL_CAPACITY

5 litres (1.1 imp. gal.)

GROUND_CLEARANCE

361 mm (14.2 in)

features & specs

KEY FEATURE

Larger 19-inch front wheel and 16-inch rear wheel
Longer swingarm accommodates the larger rear wheel and increases handling stability
Optimized Air Intake Design
Yamaha Power Valve System (YPVS) for broad, tractable power
Potent, easy-to-service two-stroke engine
Smooth-shifting, six-speed, close-ratio transmission
Compact, semi-double-cradle, single-backbone steel frame
Race-ready, fully adjustable suspension
Aggressive YZ styling

features and benefits

KEY FEATURES

Features a larger 19-inch front wheel and 16-inch rear wheel
- Perfect for the advanced 85cc rider looking for a more "big-bike" feel
Yamaha Power Valve System (YPVS) for broad, tractable power
Potent, easy-to-service two-stroke engine
Smooth-shifting, six-speed, close-ratio transmission
Compact, semi-double-cradle, single-backbone steel frame
Race-ready, fully adjustable suspension
Aggressive YZ styling
Adjustable rider ergonomics

ENGINE

Lightweight, compact, 85 cc, liquid-cooled, crankcase reed-valve inducted, 2-stroke single.
Optimized Air Intake Design
- Optimized intake design allows for a straighter, more efficient draw of air into the intake tract.
Tuned Expansion Chamber
- Carefully matched to suit the YPVS™-equipped engine, the exhaust expansion chamber optimizes gas flow for enhanced power delivery, especially in the low- and mid-range.
Yamaha Power Valve System (YPVS).
- Mechanical power valve system delivers effective exhaust timing throughout the entire rev range
- Provides excellent power and torque characteristics
- Boosts compression ratio and power output
- Delivers responsive acceleration just as the rider intends
- Slit-shaped valve on the side of the exhaust port operates in response to engine rpm
- In low-to-mid-rpm range when exhaust timing is slower, valve moves to cover the top part of the exhaust port
- In high rpm range when quick exhaust timing is needed, valve recedes and exhaust port is fully uncovered
- Shifting is reduced due to broad powerband
The crankcase design features a spacer-style reed valve intake for improved air/fuel flow
- Which inhales through a 28mm Hitachi Astemo® Keihin flat-slide carburetor for seamless throttle response.
Lightweight, forged piston.
- less reciprocating mass and less friction for a faster revving engine
- excellent durability
CDI ignition system.
- provides a hot, precise spark for fast sure starts
- provides optimal timing for quicker, stronger response at all rpms
- maintenance-free
Smooth-shifting, six-speed transmission.
- involute design increases the surface area contact between the gears
- special involute splines on main and drive shafts provide maximum engagement/hook-up for each gear for smoother, more positive shifts
- gear ratios are well matched to engine output
- Gear dimensions optimized for YPVS engine performance
Heavy-duty, multi-plate clutch.
- smooth positive shifting
Quick-remove, clutch sub-cover.
- fast, easy clutch access
Lightweight radiator with high-capacity cores and special louvers to direct the air through the rad.
- maximum cooling efficiency
Large-capacity airbox with washable, dual-stage, foam filter.
- excellent filtering qualities
  reduced expenses
Lightweight exhaust system.
- expansion chamber designed to match the output of YPVS engine
- aluminium silencer is re-packable to maintain optimum performance and reduced noise levels

CHASSIS/SUSPENSION

Lightweight 17-inch front and 14-inch rear rims are durable and reduce unsprung weight for optimal suspension performance.
Rigid, semi-double cradle, single backbone, steel frame.
- blend of light weight and good strength
- minimal flex for razor-sharp, moto-wining handling
Detachable rear subframe.
- allows easy access for suspension maintenance
- reduces costs in the event of a loop-out (subframe can be purchased separately)

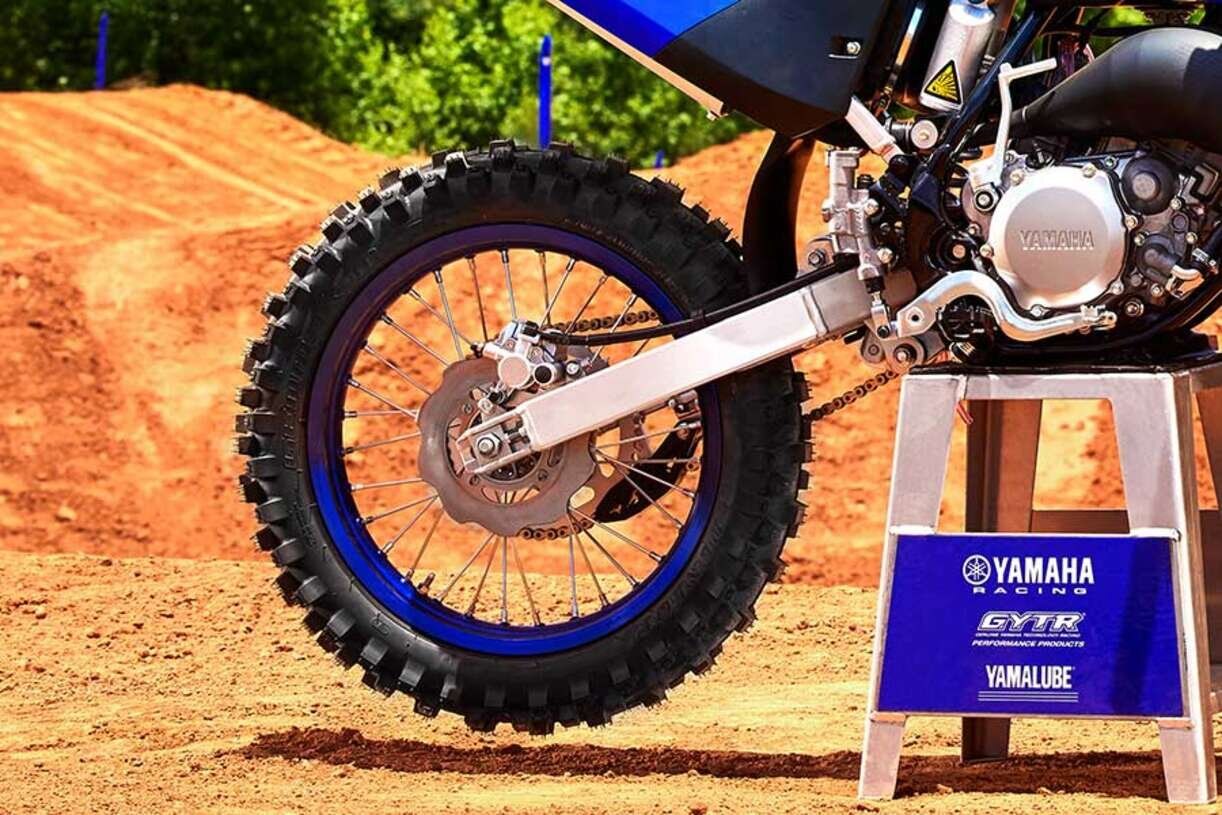

Lightweight box-section aluminium swingarm.
- composite chain guide and updated chain adjusters provide easier maintenance
- provides excellent rear-wheel control and traction

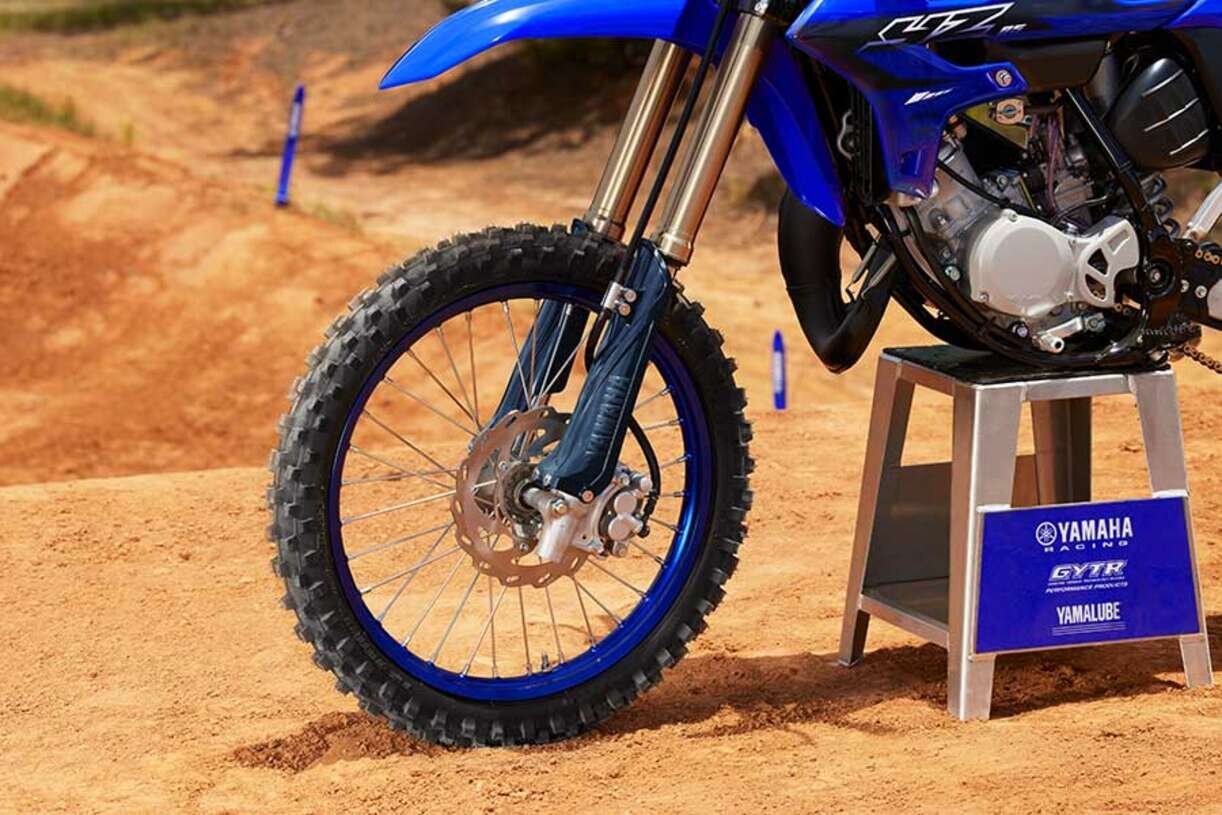

Adjustable 36 mm inverted KYB fork with 275 mm (10.8 in) of wheel travel.
- low-friction outer tubes and internals are similar to full-size YZ models
- 20 clicks of both compression and rebound damping
- adjustable design allows suspension settings to match rider weight, rider style and track conditions
- YZ125 / 250-based "big bike" valving and low-friction fork seals
- smooth, compliant stroke for superior suspension performance and handling
- front fork guard redesigned with brake hose outside of fork guard
Fully adjustable Monocross link rear suspension provides 282 mm (11.1 in) of wheel travel.
- Kayaba piggyback shock reduces shock temperatures during a long moto for fade resistant damping and consistent performance.
- adjustments include "threaded" spring preload, 15 clicks of compression and 20 clicks of rebound damping
- optional shock springs are available through Yamaha Genuine Parts and Accessories
220 mm front stainless steel wave front disc with twin-piston caliper.
- delivers strong stopping power with excellent control and great feedback.
Tapered aluminum handlebar and adjustable crown.
- Tapered handlebar
"Shorty-style" adjustable front brake lever.
- adjusts to fit various hand sizes

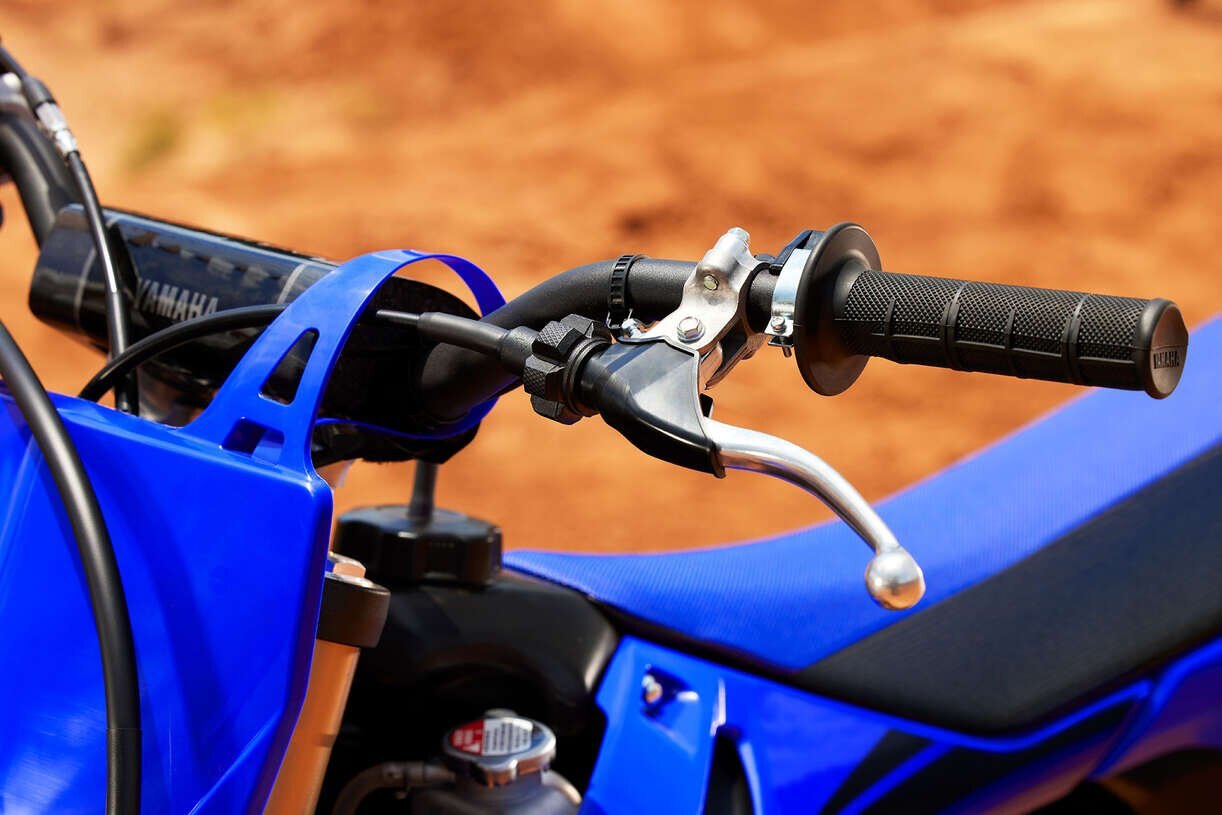

Clutch lever holder allows for clutch lever reach adjustment.
- adjusts to fit various hand sizes.
190 mm stainless steel rear disc brake squeezed by a single piston caliper.
- Excellent stopping power
- caliper is protected by a rugged plastic protector
Lightweight, blue 19-inch front and 16-inch rear DID rims.
- excellent durability
- reduces unsprung weight for optimal suspension performance
- Dunlop MX3S knobby tires offer exceptional traction
Modern, aggressive, slim line bodywork.
- slim body design for excellent freedom of movement and rider mobility

DETAILS

The four-position adjustable handlebar mounts and taper-style handlebar allow the rider to tune the handlebar position to suit their size and preferences.
Flat seat and narrow fuel tank design, along with smoothly integrated body panels and slim shroud width, combine to enable greater freedom of movement for increased control and confidence.
Sealed tapered steering head bearings for extra durability
Serrated rear brake pedal and folding shift lever tip
Wide, cast-alloy serrated footpegs offer good grip
Stainless steel inner clutch cable for longer life and smooth operation
Rubber boots on clutch and brake levers to reduce dirt, mud and water entry for durability
Convenient lifting holes in side cover
Rugged chain guide helps prevent chain from de-railing and also protects rear sprocket
E10 friendly fuel system components
