ID # 29332257

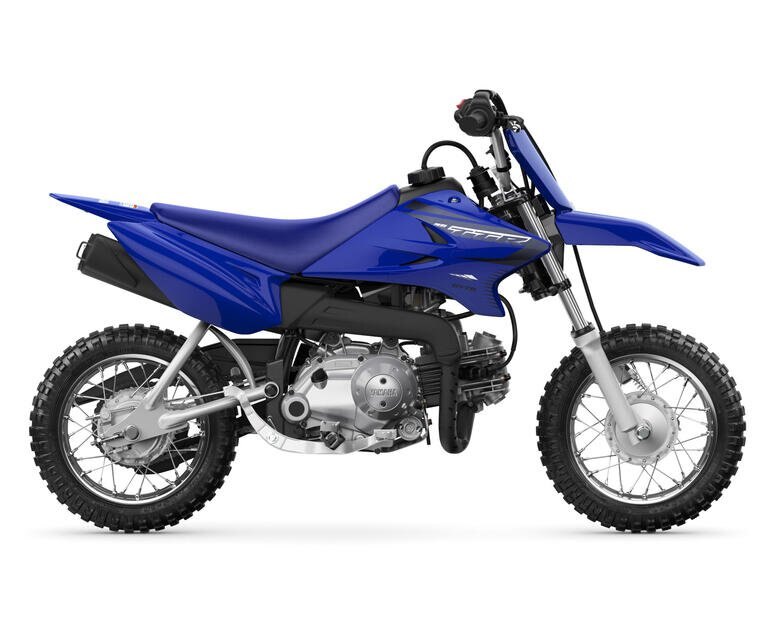

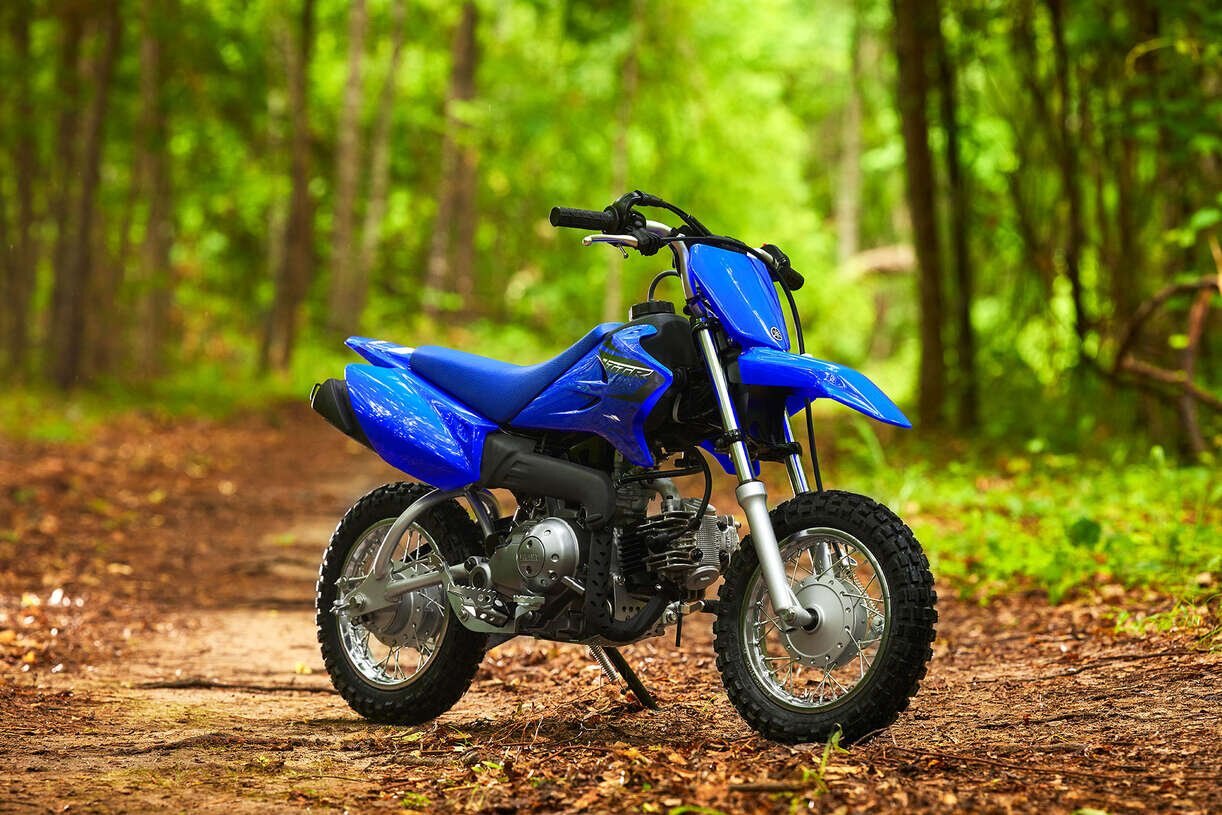

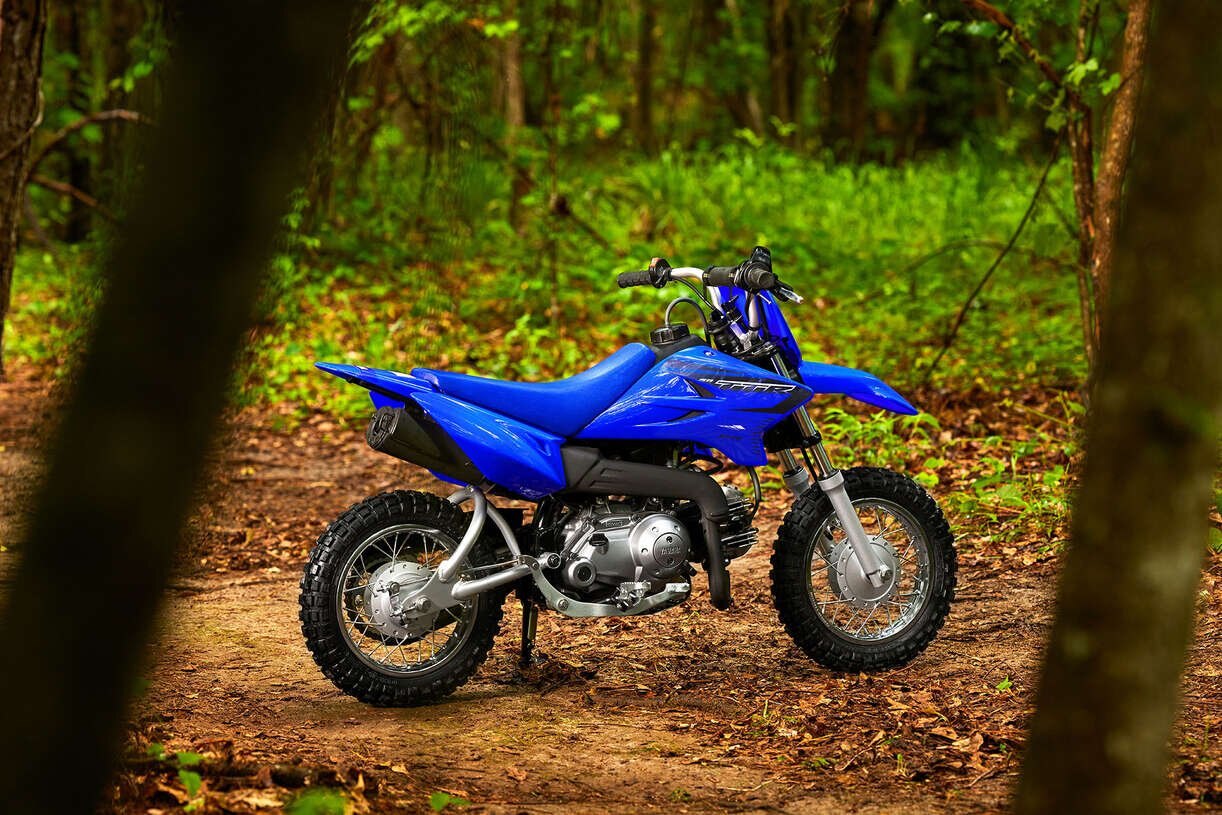

2023 Yamaha TT-R 50

  • 2023 Yamaha TT R 50
  • 2023 Yamaha TT R 50
  • 2023 Yamaha TT R 50
  • 2023 Yamaha TT R 50
  • 2023 Yamaha TT R 50
  • 2023 Yamaha TT R 50
  • 2023 Yamaha TT R 50
  • 2023 Yamaha TT R 50
  • 2023 Yamaha TT R 50
2 LEFT!

CURRENT PROMOTIONS

Dealer Price $3,149 CAD
$2,599.00
Price includes Freight and Setup
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great finance options available!!!

Our littlest TT-R boasts big YZ styling, four-stroke power, a three-speed automatic-clutch gearbox and it even comes with push-button electric starting. So go ahead... play in the dirt!


Specifications
Model
TT-R
Category Name
Motorcycles
Year
2023
Sale Type
New
Manufacturer
Yamaha
Color
Team Yamaha Blue
Engine Size
50 cc
engine
ENGINE
4-stroke, air-cooled, SOHC, 2-valve, single
FINAL DRIVE
Chain
DISPLACEMENT
50cc
TRANSMISSION
Constant mesh, 3-speed, semi automatic
FUEL DELIVERY
Mikuni VM11
MAXIMUM TORQUE
0.32 kg-m (2.3 ft-lb) @ 5,500 rpm
BORE AND STROKE
36 x 48.6 mm
COMPRESSION RATIO
9.5:1
IGNITION / STARTING
CDI / Electric & kick
chassis
TIRES (REAR)
2.50-10 4PR
BRAKES (REAR)
Drum
TIRES (FRONT)
2.50-14 4PR
BRAKES (FRONT)
Drum
SUSPENSION (REAR)
Monocross, single shock / 71mm (2.8") wheel travel
SUSPENSION(FRONT)
26 mm conventional fork / 96mm (3.8") wheel travel
highlights

ENGINE2023 Yamaha TT R 50

An air-cooled, 50 cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, reliable, novice-friendly power that will help ease new riders up the learning curve.

EASY TO RIDE2023 Yamaha TT R 50

Convenient, push-button electric starting makes it a snap to get running, taking one of the hassles out of learning how to ride.





critical data
WIDTH
595mm (23.4")
HEIGHT
795mm (31.3")
LENGTH
1,305mm (51.4")
COLOUR(S)
Yamaha Racing Blue
WHEELBASE
58 kg (128 lb)
WET WEIGHT
72 kg (159 lb)
SEAT HEIGHT
555mm (21.9")
FUEL CAPACITY
3.1 litres (0.7 imp. gal.)
GROUND CLEARANCE
135mm (5.3")
features & specs

KEY FEATURE

  • Convenient, push-button electric starting makes learning to ride much easier.
  • Compact engine cases.
  • Proven, 2-valve cylinder head design.
  • Intake & exhaust valves feature special "carbon cutter" valve stem design.
  • Automatic ratchet-type cam chain adjuster.
  • Lightweight crankshaft design. ​
features and benefits

ENGINE

  • Air-cooled, 50 cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, novice-friendly power that eases the new rider up the learning curve.
  • Convenient, push-button electric starting makes learning to ride much easier.
  • Compact engine cases.
    • keeps engine width narrow
    • makes it easier for smaller riders to get their feet firmly on the ground
  • Proven, 2-valve cylinder head design.
    • easy to adjust traditional rocker arm valve actuation
    • 150-hour valve adjustment intervals
  • Intake & exhaust valves feature special "carbon cutter" valve stem design.
    • automatically removes carbon build up from the valve stems
    • maintains maximum engine efficiency and power
    • carbon build up on valve stems can lead to sticky valves and poor performance
  • Automatic ratchet-type cam chain adjuster.
    • reduces maintenance time, tune-up costs and reduces mechanical engine noise
  • Lightweight crankshaft design.
  • Mikuni VM11 carburetor with electric carb heater (heater does not function above 16 degrees Celsius).
    • crisp, easy-to-use, linear throttle response
    • excellent fuel economy
    • carb heater reduces engine warm-up time and improves cold-weather starting
    • "Electroless" nickel plating applied to valve seat and nickel silver needle valve to counter act the negative effects of E10 (10% ethanol) fuels.
  • Washable foam air filter reduces costs.
  • Smooth-shifting, 3-speed transmission with automatic centrifugal clutch.
    • auto clutch eases the beginner into the basics of shifting without the complications of a clutch
    • optimized transmission ratios match engine output
  • CDI (capacitor discharge ignition) system.
    • maintenance-free
    • delivers a strong spark for fast starts & solid engine performance
  • Centrifugal oil filtering system.
    • automatically removes any particles found in the oil
    • never requires cleaning or maintenance
    • fast, easy oil changes
  • Lightweight, up-swept exhaust system.
    • produces a quiet exhaust note to keep the neighbours happy
    • numerous heat shields to protect young riders for hot components
    • cleanable screen-type spark arrestor

CHASSIS/SUSPENSION

  • Rugged "mini-size" steel backbone-type frame provides rugged durability whether being ridden by a child or an adult. The engine mounts to the frame at three points, making the entire chassis more rigid for superior handling.
  • Triangulated steel tube swingarm.

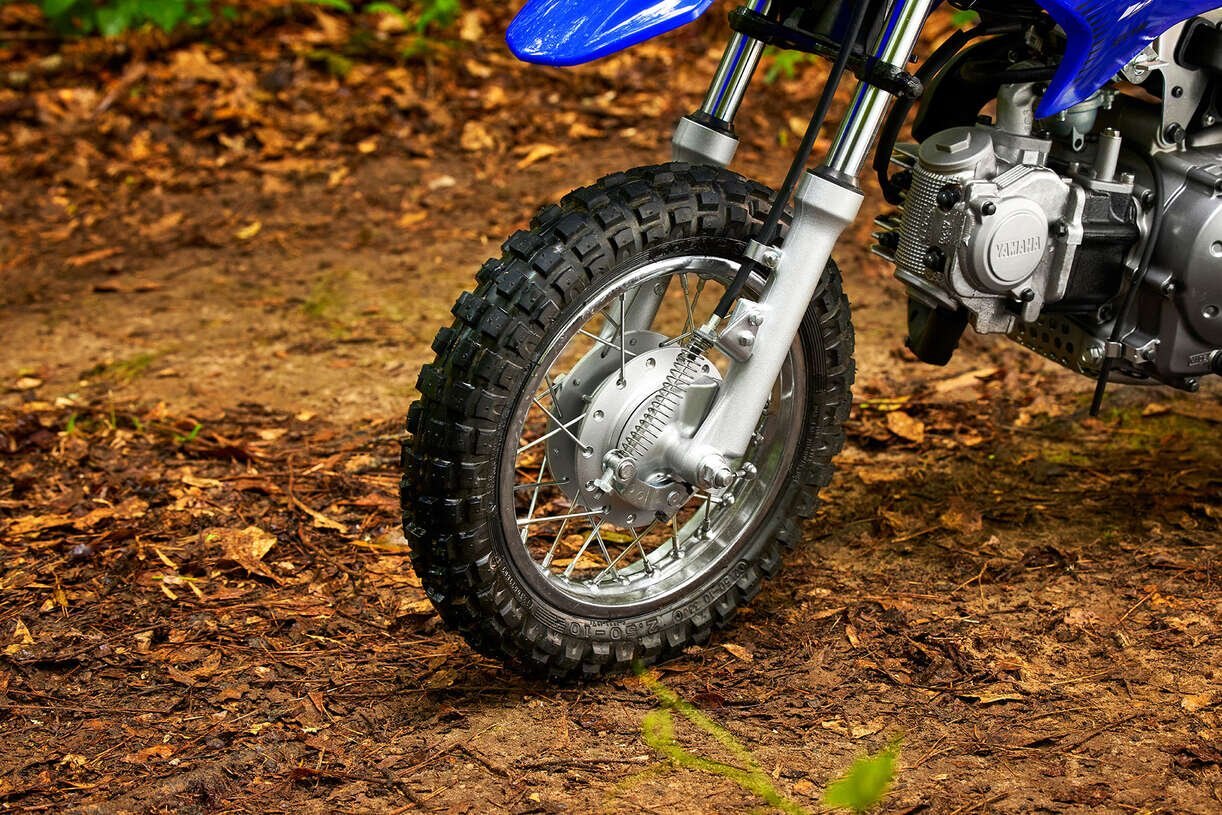

  • Conventional 22 mm Showa front fork offers a class-leading 96 mm (3.8") of wheel travel.
    • confidence-inspiring control over rough terrain
    • plastic fork leg protectors help prevent stone chips in fork tubes and extend fork seal life

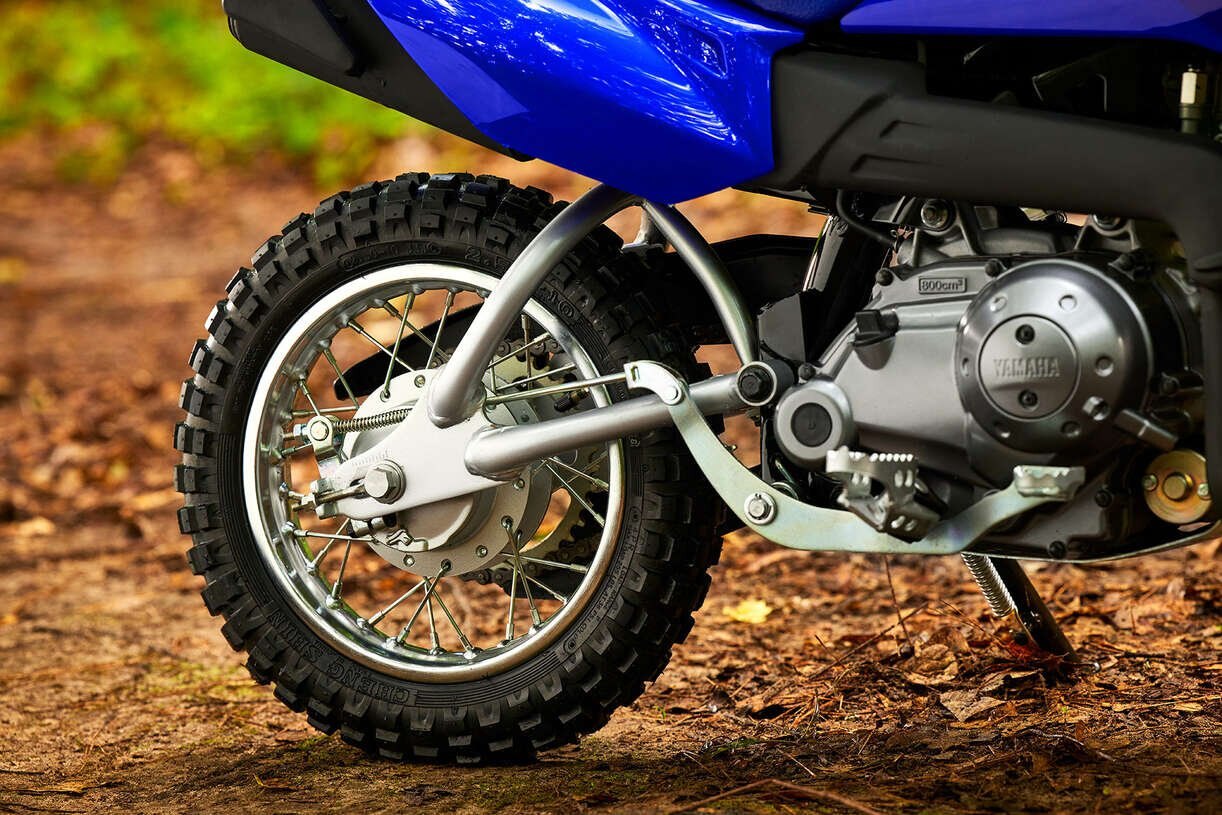

  • Monocross single-shock rear suspension with 71 mm (2.8") of wheel travel.
    • delivers progressive suspension performance to smooth out rough trails
  • Low 556 mm (21.9") seat height.
    • allows most riders to put both feet firmly on the ground for added confidence
    • provides a handling-enhancing lower centre of gravity & lightweight feeling
  • Long, motocross-style seat is low, comfortable and allows good rider mobility.
  • Front and rear 80 mm drum brakes
    • strong, dependable stopping power
    • brake components are the same front and rear
  • 2.50 x 10 front and rear knobby tires
    • puncture-resistant 4-ply design
    • excellent traction in the dirt
  • 135 mm (5.3") of ground clearance
    • allows the TT-R50E to tackle modest obstacles
  • 3-litre plastic resin fuel tank
    • plenty of smiles and fun between fill-ups
    • on/off/reserve fuel petcock for peace of mind

DETAILS

  • Serrated folding foot pegs provide excellent grip even in wet or muddy conditions
  • Convenient handlebar mounted paddle-style choke lever
  • Rugged YZ-F inspired plastic body components resist damage in the event of a tip-over
  • YZ-F inspired styling & graphics gives the TT-R50E that big YZ look
  • YZ-style handlebar with protective foam pad features a re-enforcing cross bar for extra strength
  • Low maintenance sealed battery prevents leaks during a tip-over (battery should be charged during winter storage)

SAFETY ITEMS

  • Adjustable throttle stop screw allows adult supervisor to control top speed by restricting how far the throttle can be opened. Adjustment design is fast & easy
  • Key operated ignition allows parents to control use
  • Exhaust heat shields protect young riders from hot components
  • Upper and lower chain guards


    IMPORTANT NOTE: Adult supervision and proper protective riding gear, including a helmet & eye protection are a must when a youngster is operating a TT-R50E.
