2025 KTM 300 SX

Stock # 390814P

$9,799 CAD

Location:
Calgary

Not available at your location? No Problem, we will transfer it to your nearest location. On checkout, please indicate which location is closest for you.

Get a Quote Get Financed Value a Trade

Print

Contact Us

Model

SX

Category Name

Motorcycles

Year

2025

Sale Type

Used

Manufacturer

KTM

Vin

VBKSXP238SM390814

Quantity

0

Manufacturer Qty

0

Overview

When it comes to power-to-weight ratios, the KTM 300 SX writes the rule book. Now with learnings taken directly from the KTM Factory Racing teams, and a care package labeled "Go get 'em!", the 2025 KTM 300 SX is engineered for one task alone - to lead from the front.

Just Arrived!

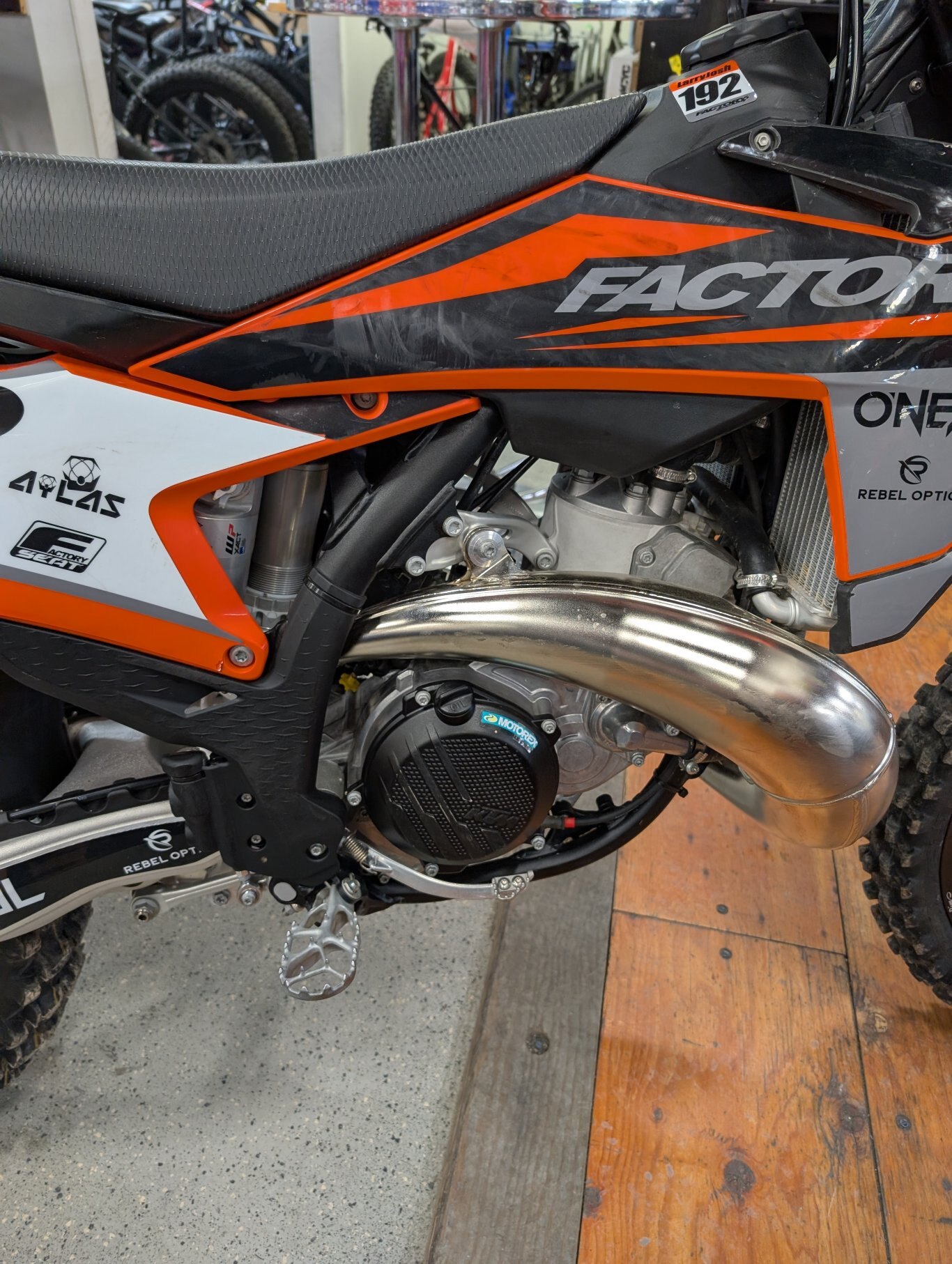

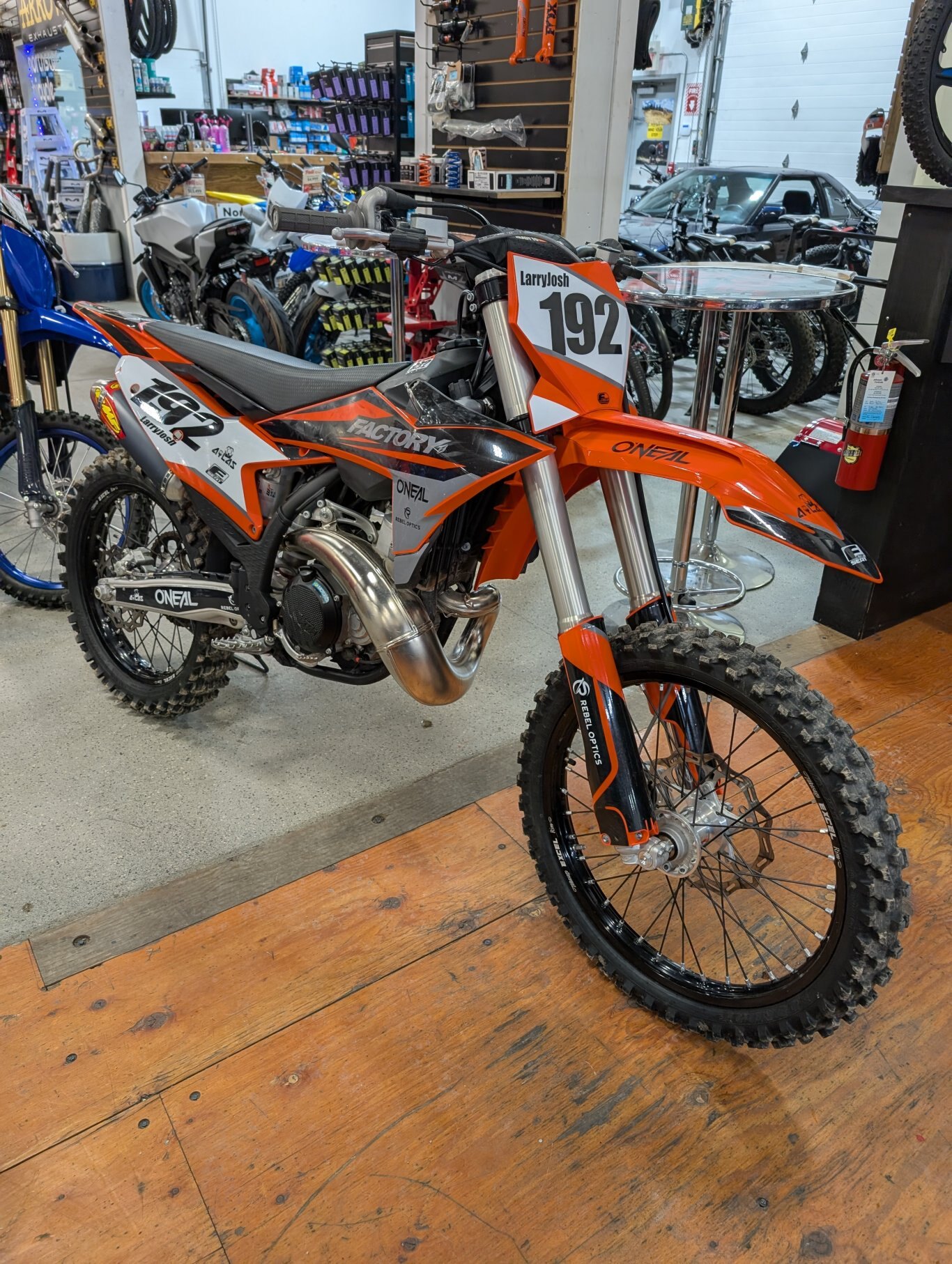

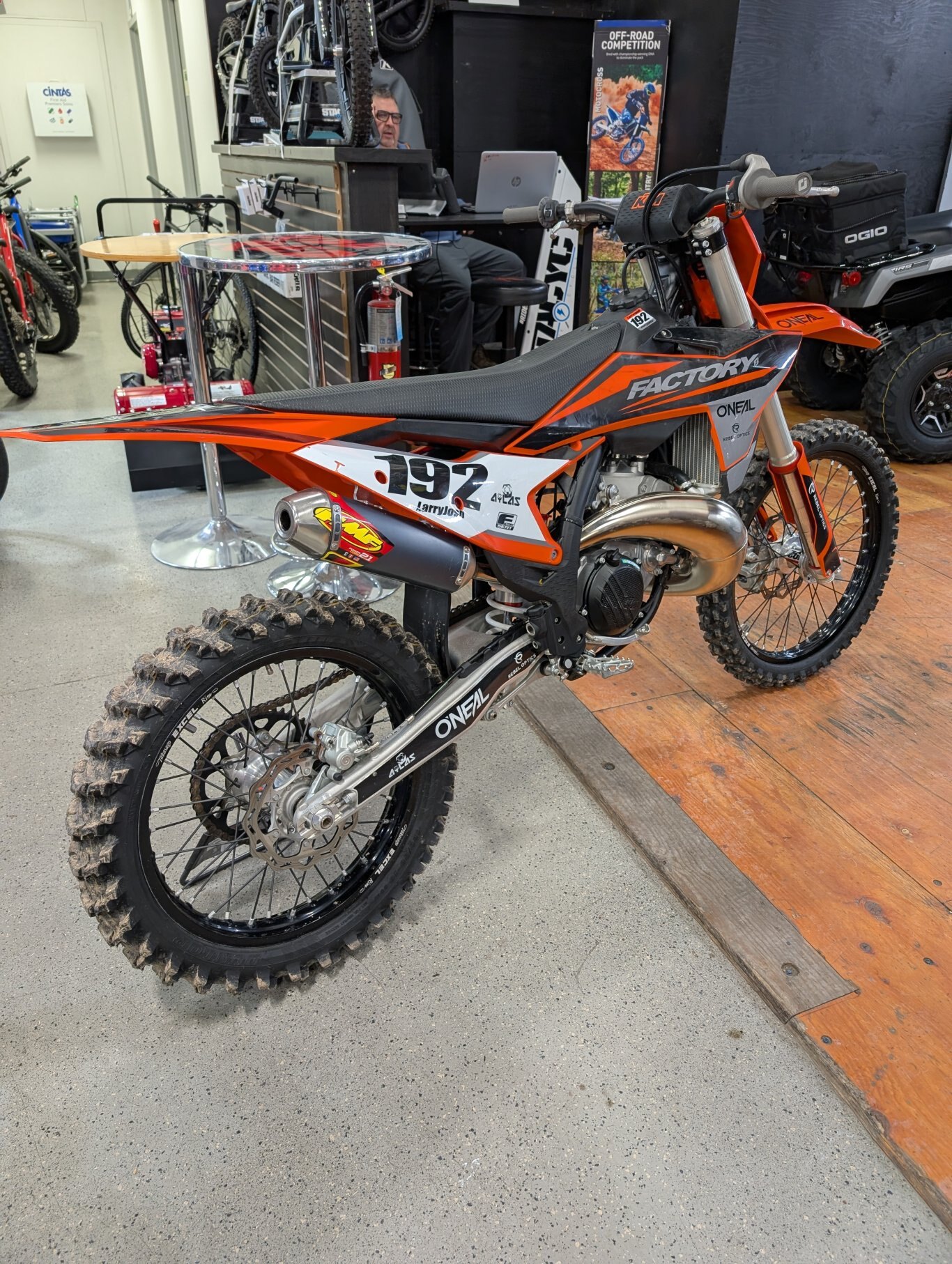

Super Clean 2025 KTM 300 SX

Ready for your next adventure!

Financing Available.

Specifications

Model

SX

Category Name

Motorcycles

Year

2025

Sale Type

Used

Manufacturer

KTM

Vin

VBKSXP238SM390814

before the gate

Easy Suspension Adjustment

As always, the suspension boasts an easy tool-free setup at both ends, ensuring you chase down the podium in total control. On the rear, a hand-adjustable dual compression control allows riders to adjust high- and low-speed settings in a matter of seconds. The forks on the front end are also easily adjusted thanks to hand-adjustable clickers on the bottom of the fork shoe and top cap.

Electric Start

Picture this; You're 7 laps into an absolute ripper of a race. You miss your line and end up stalling in a deep rut. But you don't sweat it. All you do is press the starter button and you blast off again to take the final flag. This is the reality on the 2025 KTM 300 SX. Thanks to a 12.8V 2 Ah lithium ion battery is placed under the rider's seat, a high-quality stator & pickup and super robust design, the only thing you'll be kicking - is ass.

Electronic Fuel Injection

Pre-mix gets a remix across the 2-stroke KTM SX range, with Electronic Fuel Injection setting the standard. Now there's no more fiddly jetting setup pre-race, And thanks to the Keihin EFI and reed valve case design, you can be guaranteed of laying down optimal power at any altitude, all of the time.

start strong

EFI + Power Valve

With EFI comes great rideability. Along with the electronic fuel injection and a power valve on the KTM 300 SX, allowing for more usable power throughout the rev range. Smoother power means better traction. Better traction means holeshot heaven!

Performance

The new 300 cc 2-stroke powerhouse brings a new choice of weapon into the MX Open category and provides more choice for racers looking for maximum power at the least possible weight. Along with low maintenance costs, an overall engine weight of just 52.6 lb (23.9 kg), the 2025 KTM 300 SX provides pure performance. And then some.

Selectable Maps

The 2025 KTM 300 SX features a map select switch allowing the racer to switch between 2 engine maps. Map 1 provides a linear, predictable power delivery, while Map 2 gives it the full beans with crisp, explosive power output.

calm under fire

Absolute Control

Get ready for a full-on berm assault. The 2025 KTM SX and SX-F machines have received major frame updates directly from Factory Racing efforts. For starters, the frame area around the rear shock mount has been updated and made more streamlined, with new engine mounts and cut-outs for improved chassis flex. The front area of the frame is also updated. with a different wall thickness than the previous model year, with renewed engine mounts. This adds up to a 300g weight saving and improved flex for better cornering.

Ergonomics

Upgraded tank shrouds using bi-compound plastics channel air towards the radiators more efficiently, while a new fuel tank roll, makes for a tighter, more secure fitment, reducing the chance of frame scrubbing and dramatically improving durability. All this works alongside the specially-developed rider triangle, to provide unmatched knee contact and gripping surfaces - especially when standing on the pegs.

Mass Centralization

With a major emphasis placed on mass centralization, the 2025 KTM 300 SX engine is designed to centralize rotating mass for optimal operation with the chassis. This results in a lighter, more agile handling feel that simply runs rings around the competition.

hit the big stuff

Updated Suspension Settings

For 2025, the KTM SX and SX-F range has given the WP XACT AER fork and WP XACT rear shock an update. This means you'll be lining up at the starting gate with re-tuned settings, reduced weight, improved weight distribution, and an increase in overall response.

WP XACT Fork

Let's get the technical parts out of the way first; the 48 mm WP XACT AER forks fitted to the 2025 KTM SX and SX-F line-up features a capsulated air spring and pressurized oil chamber for progressive and consistent damping, while oil and air bypasses reduce pressure peaks. In combination with the mid-valve damping system, all this provides exceptional feedback and rider comfort. The fork also boasts new settings, which not only compliment the updated frame and rear linkage, but ensures stellar performance at all levels. Speaking of settings, these are easily adjusted via a single air pressure pre-load valve, as well as easy-access click adjusters for compression and rebound. Additionally, the air pump needed to adjust the fork's air pressure is provided as standard in the buy-pack.

WP XACT Shock

Keeping things in check at the rear, the WP XACT rear shock has also undergone some changes for 2025 using settings directly from the KTM Factory Racing Teams The improved frame and shock geometry mean more ground clearance at the linkage, making it less susceptible to bottoming out. While we're on the topic, smaller diameter linkage bolts save weight, while new linkage seals refine rear shock response and advanced damping characteristics.

Stability

An upgraded rear brake pedal finds its way onto the 2025 KTM Motocross range, adding additional stiffness, bending resistance and braking feel to the overall package. At the other end, a forged steering head connection and CNC-milled triple clamps, make for the perfect alignment of the fork tubes. This precise geometry of the fork clamps ensures highly responsive and smooth fork action – not to mention unwavering stability when charging across ruts and onto the podium.

Tires

Getting power hooked into the dirt is a tough job. However, hours of research and testing have led the 2025 KTM Motocross range to the Dunlop GEOMAX MX34. Providing unmatched stability and control at the highest level, these rubber hoops feature a new carcass and rubber compound that improves damping and absorption, maintaining performance up to 30% longer. New Progressive Cornering Block Technology also improves grip in the berms, while a new rear pattern with 11% taller and 44% wider center block for increased traction and control everywhere else. Lastly, this unique block arrangement works to dispel mud buildup, ensuring traction in even the muddiest of track conditions.

maintaining momentum

Energy absorption

Besides the expertly crafted, hydro-formed, laser-cut, and robot-welded frame being engineered to provide exceptional rider feedback and straight-line stability, it consists of specifically calculated parameters of longitudinal and torsional flex. This means the frame acts as a "shock absorber" of sorts, making for a less harsh ride, resulting in less rider fatigue over many hard laps.

Ground clearance

No one enjoys a bad hook-up. Good thing, then that the shock absorber geometry on the 2025 KTM 300 SX improves ground clearance of the linkage, with the topology-optimized die-cast footpegs being less susceptible to hooking on deep ruts, and take-offs when scrubbing.

Consistency

A new chain guide and chain guard result in improved durability and minimize the chances of hooking on external objects - especially in extremely muddy conditions while reducing dirt build-up around the swingarm and rear sprocket.

engine technical details

EMS

Vitesco Technologies EMS

BORE

72 mm

CLUTCH

Wet, DDS multi-disc clutch, Brembo hydraulics

DESIGN

1-cylinder, 2-stroke engine

STROKE

72 mm

STARTER

Electric starter

DISPLACEMENT

293.2 cm³

TRANSMISSION

5-speed

FUEL-MIXTURE_GENERATION

Keihin EFI, throttle body 39 mm

chassis technical details

CHAIN

520, Non-sealed

WHEELS

Spoked wheels with aluminium rims

SILENCER

Aluminium

HANDLEBAR

Neken, aluminium Ø 28/22 mm

WHEELBASE

1493 mm

REAR_BRAKE

Disc brake

FRONT_BRAKE

Disc brake

SEAT_HEIGHT

958 mm

FRAME_DESIGN

Central double-cradle-type 25CrMo4 steel

REAR_SUSPENSION

WP XACT Monoshock with linkage

FRONT_SUSPENSION

WP XACT-USD (AER), Ø 48 mm

GROUND_CLEARANCE

354 mm

STEERING_HEAD_ANGLE

63.9 °

REAR_SUBFRAME_DESIGN

Aluminum-reinforced polyamide

WEIGHT_(WITHOUT_FUEL)

99.4 kg

TANK_CAPACITY_(APPROX.)

7.2 l

REAR_BRAKE_DISC_DIAMETER

220 mm

SUSPENSION_TRAVEL_(REAR)

300 mm

FRONT_BRAKE_DISC_DIAMETER

260 mm

SUSPENSION_TRAVEL_(FRONT)

310 mm
